Description

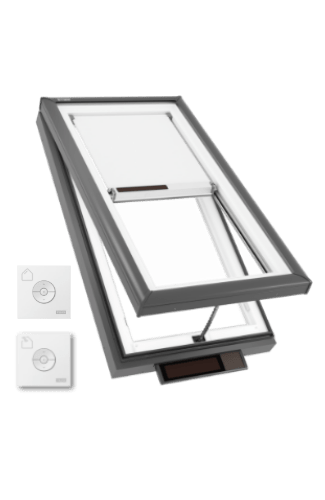

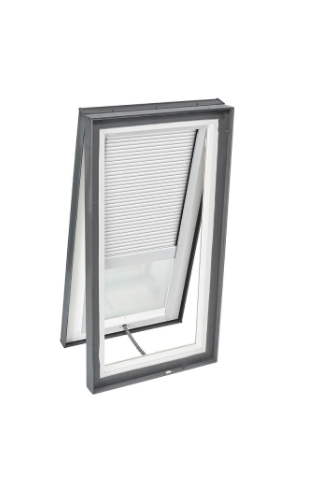

VELUX VCS 3046 – SOLAR POWERED – Complete Skylight System – 30 X 46
PRODUCT DETAILS:
• Laminated LoĒ3 Glass: double-paned argon-gas-filled LoĒ3 glass that provides excellent energy performance for year round comfort.
• Plus, it includes the added safety of laminated glass, which building codes require for out-of-reach applications.
• 10-year installation warranty, plus 20 years on glass, 10 years on product, and 5 years on shades and controls.
• 10 year hail with Clean, Quiet & Safe glass
• Maintenance free frame
FEATURES & BENEFITS:
• Solar-powered to effortlessly open and close without electricity, circulating fresh air throughout our home or office
• Clean exterior profile provides natural light without obstructing roofline
• Acoustic rain sensor closes your skylight at the first sign of rain
• Versatile sizing allows for greater flexibility in positioning options
• Seamlessly pairs with any VELUX shades for optimal light control
• Flashing kit required for NO LEAK WARRANTEE
• Eligible for Federal Solar Tax Credit*
VELUX Solar Powered VCS, Venting Curb Skylight “Fresh Air” No Leak Skylight.
The VELUX Solar Powered “Fresh Air” Skylight is our greenest standard flat skylight.
A small solar panel attached to the base collects all available daylight (even on cloudy days) to power the battery system that opens and closes the skylight.
At the first sign of rain, the acoustic rain sensor closes the skylight.
Easy to install:
Our deck and curb mounted fixed skylight is perfect for visually expanding areas such as hallways, stairwells, and other closed-in, dark spaces that can be transformed with light and sky views. It provides an economical choice in creating a spacious home that is filled with natural light. Heavy-duty materials ensure that our fixed skylight is built to withstand the installation process, as well as anything Mother Nature throws its way. An economical choice that creates a spacious home filled with natural light, the VELUX Fixed Curb-Mounted Skylight is perfect for visually transforming your space with daylight and sky views. Heavy-duty materials ensure that this fixed skylight is built to withstand anything Mother Nature throws its way.
Our deck and curb mounted Manual Venting is perfect for visually expanding areas such as hallways, stairwells, and other closed-in, dark spaces that can be transformed with light and sky views. It provides an economical choice in creating a spacious home that is filled with natural light. Heavy-duty materials ensure that our fixed skylight is built to withstand the installation process, as well as anything Mother Nature throws its way.
Available in deck-mount and curb-mount options
• Eligible for 30% federal tax credit*
• Covered by our No Leak Warranty when installed with VELUX flashing
• Pairs with VELUX ACTIVE with NETATMO for total skylight control and custom climate automation through your smartphone
• Package includes 2 Remotes control pads and insect screen
• Rain sensors automatically close the window
• Solar-powered no need to hard wire
• Factory installed blinds
• The No Leak Skylight carries the 10-year installation warranty
Ideal Applications:
Out of reach entryways, living rooms and bedrooms that can benefit from daylight.
Solar Powered “Fresh Air” Skylight (VCS) – Curb Mount
 |
VELUX Skylight System Includes Skylight, Shade, and Two Remote Controls | |||||||||
| VCS Size Code | 2222 | 2234 | 2246 | 3030 | 3046 | 3434 | 3737 | 4622 | 4630 | 4646 |
|---|---|---|---|---|---|---|---|---|---|---|
| Inside curb (W”xH”) | 22 1⁄2 x 22 1⁄2 |
22 1⁄2 x 34 1⁄2 |
22 1⁄2 x 46 1⁄2 |
30 1⁄2 x 30 1⁄2 |
30 1⁄2 x 46 1⁄2 |
34 1⁄2 x 34 1⁄2 |
37 1⁄2 x 37 1⁄2 |
46 1⁄2 x 22 1⁄2 |
1⁄2 x 30 1⁄2 |
46 1⁄2 x 46 1⁄2 |
| Outside curb (W”xH”) | 25 1⁄2 x 25 1⁄2 |
25 1⁄2 x 37 1⁄2 |
25 1⁄2 x 49 1⁄2 |
33 1⁄2 x 33 1⁄2 |
33 1⁄2 x 49 1⁄2 |
37 1⁄2 x 37 1⁄2 |
40 1⁄2 x 40 1⁄2 |
49 1⁄2 x 25 1⁄2 |
46 1⁄2 x 33 1⁄2 |
46 1⁄2 x 46 1⁄2 |
| Maximum skylight clearance (W”xH”) | 26 5⁄8 x 26 5⁄8 |
26 5⁄8 x 38 5⁄8 |
26 5⁄8 x 50 5⁄8 |
34 5⁄8 x 34 5⁄8 |
34 5⁄8 x 50 5⁄8 |
38 5⁄8 x 38 5⁄8 |
41 5⁄8 x 41 5⁄8 |
50 5⁄8 x 26 5⁄8 |
46 5⁄8 x 34 5⁄8 |
50 5⁄8 x 50 5⁄8 |
Our deck and curb mounted fixed skylight is perfect for visually expanding areas such as hallways, stairwells, and other closed-in, dark spaces that can be transformed with light and sky views. It provides an economical choice in creating a spacious home that is filled with natural light. Heavy-duty materials ensure that our fixed skylight is built to withstand the installation process, as well as anything Mother Nature throws its way.
